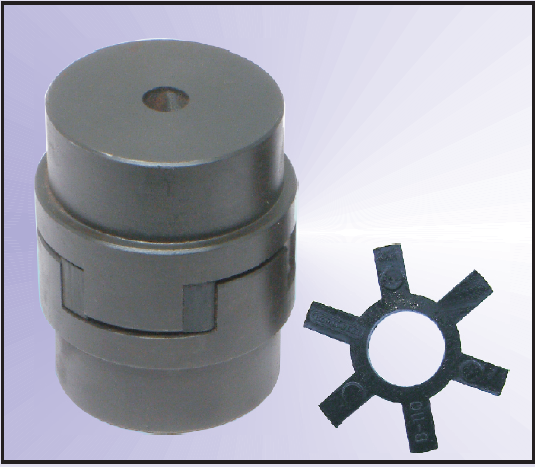

Star (Jaw) Couplings :

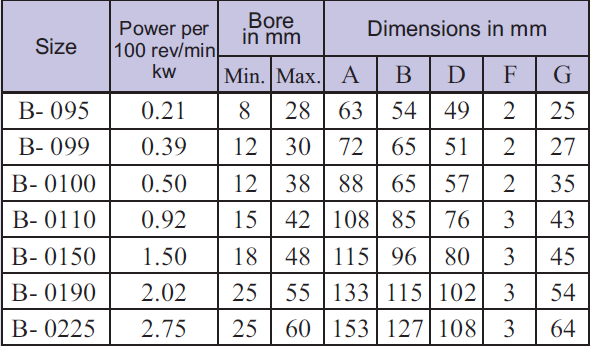

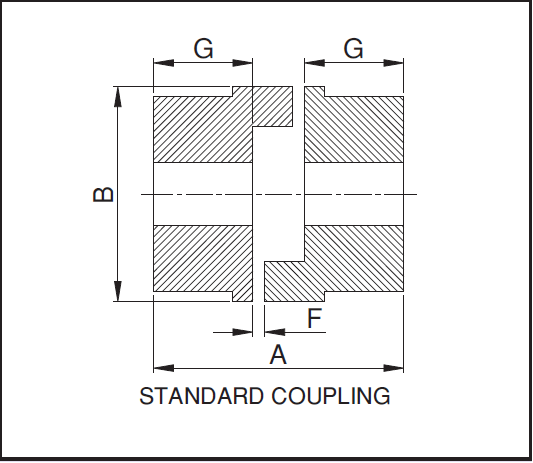

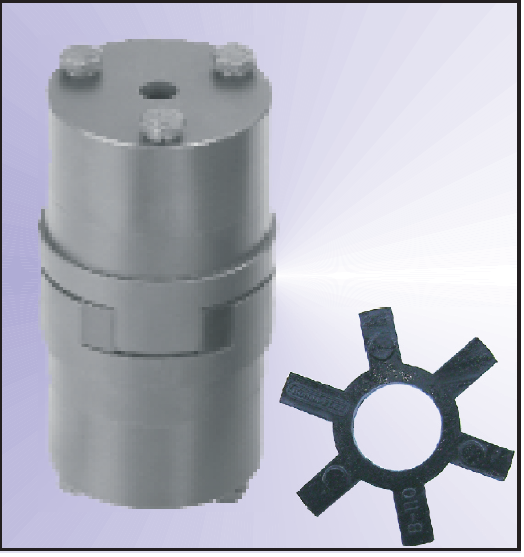

B-TYPE STANDARD COUPLINGS

Image description
Image description

Features:-

>> Simple construction-quick easy installation- Nospecial tools required.

>> Flexible insert caters for incidental angular, parallel and axial misalignment.

>> Absorbs shock loads and damps small amplitude vibration.

>> Insert design presets correct distance between hubs, using raised      pads on each leg of insert.

>> Available in a range of stock bore sizes. Can also be supplied with finished bore & keyway.

>> Unaffected by moisture, grease and oils-including non-aromatic and non-ketones solvents and temperatures within the range-40C  to 100C.

>> Spacer coupling with spacer size depending upon the distance between two shaft ends (DBSE).


Image description

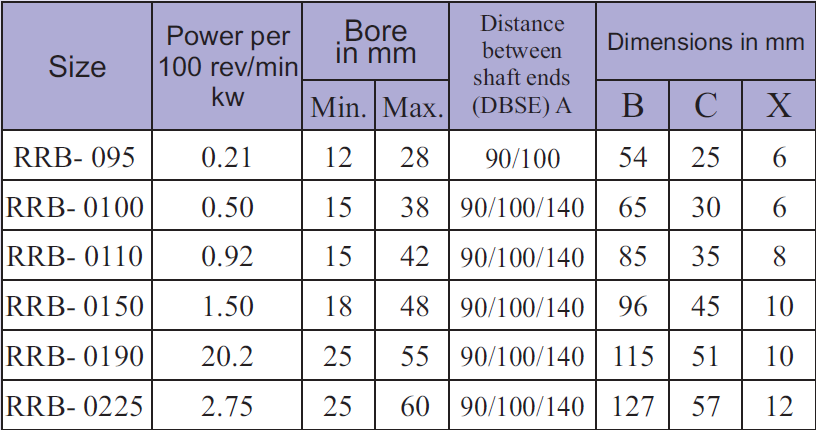

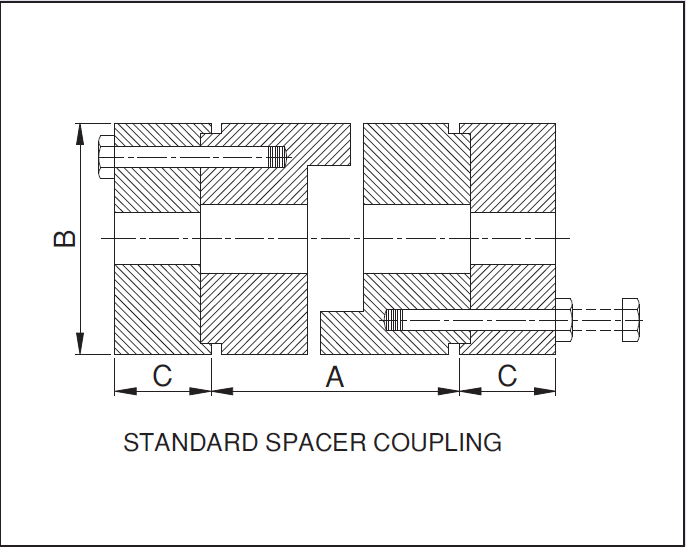

RRB - TYPE STANDARD SPACER COUPLINGS :

Image description
Image description

FEATURES:-

  • Simple construction
  • Quick easy installation
  • No special tools required
  • Designed for “back” pull out pumps
  • Driven Unit is required like compressors, generators, blowers etc.
  • Available in range up to 100 HP/24 Kg.
Image description

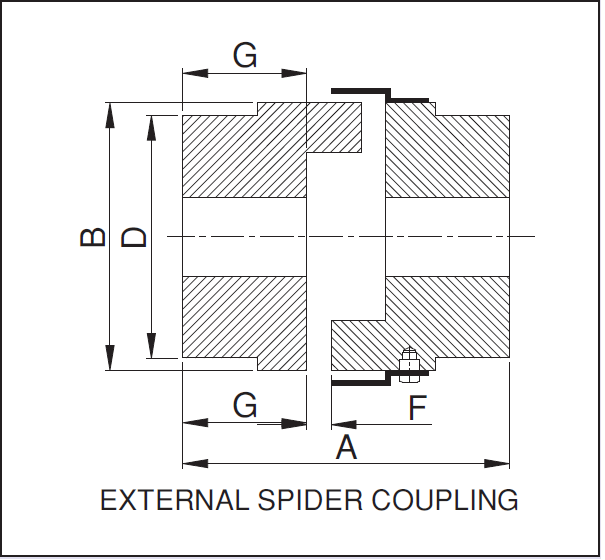

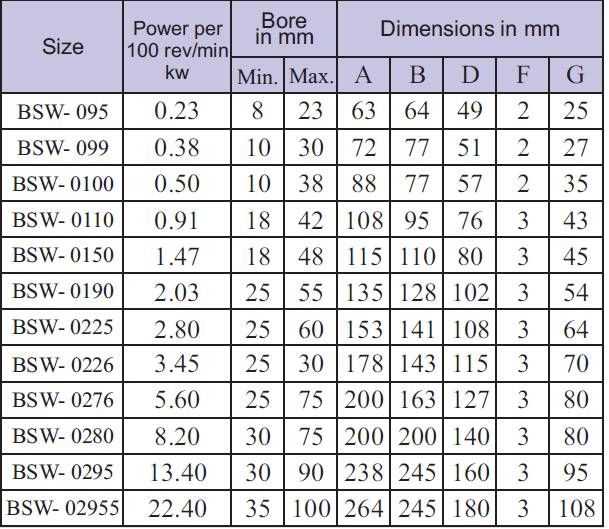

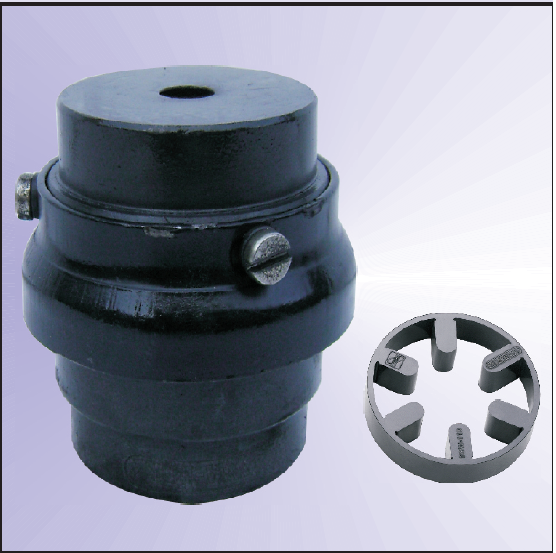

BSW - TYPE EXTERNAL SPIDER COUPLINGS

Image description
Image description

FEATURES:-

  • Simple construction
  • Because snap wrap concept maintenance of machine splitted at centerline of shaft
  • Also available snap wrap polyrathane.
Image description

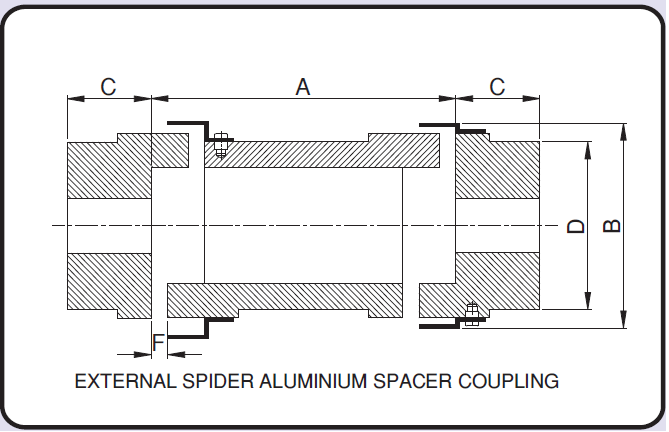

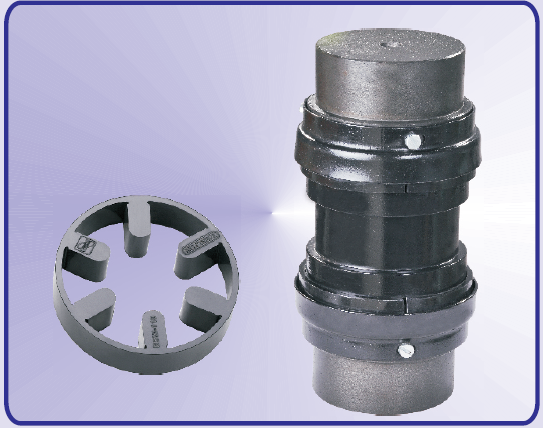

BRRS - TYPE EXTERNAL SPIDER ALUMINIUM SPACER COUPLINGS

Image description
Image description

FEATURES:-

  • Designs for machines requiring space for maintenance.
  • Double flexibility – 2 snap wrap
  • Floating spacer low weight made from aluminium
Image description

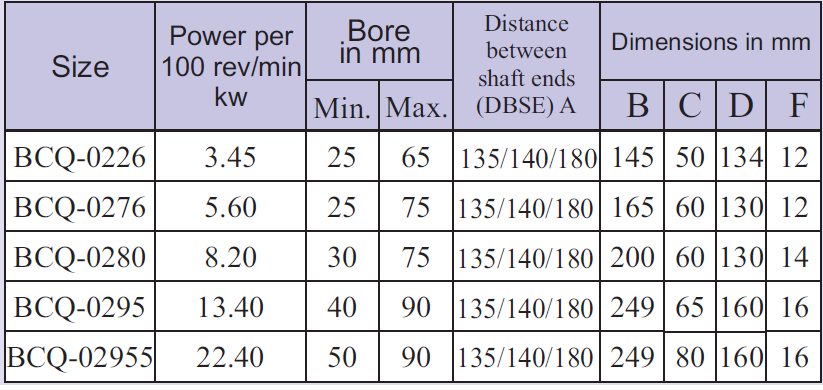

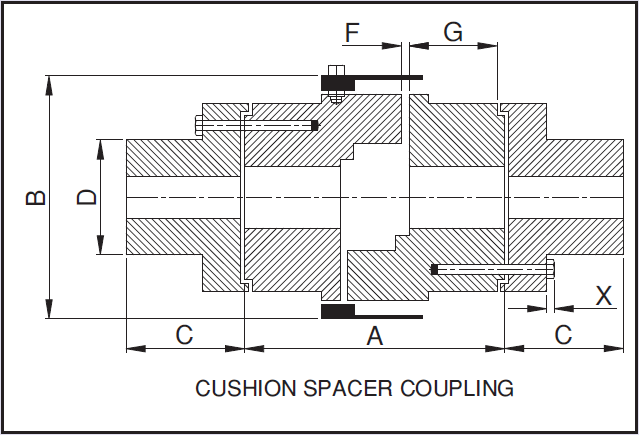

BCQ - TYPE CUSHION SPACER COUPLINGS

Image description
Image description

FEATURES:-

  • Simple construction
  • Easy maintenance
  • Included both spacer and SW concept for lower maintenance.
  • Heavy weight type coupling
Image description
