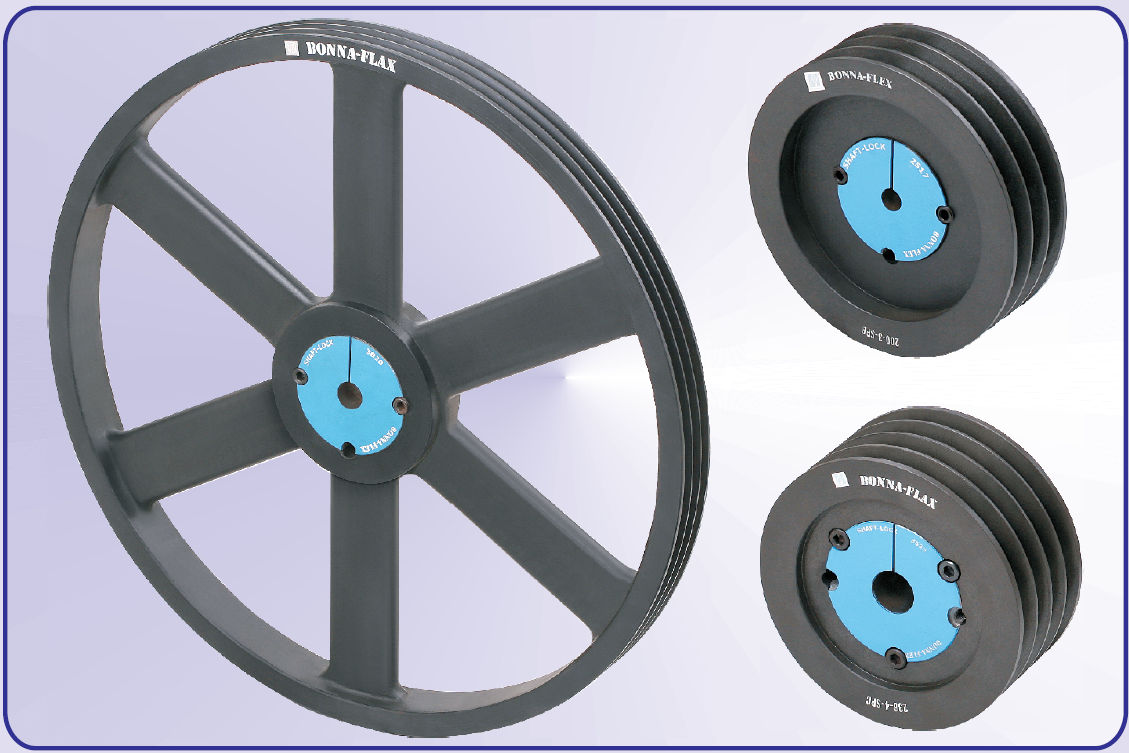

Taper Bush Pulleys :

Image description

SAILENT FEATURES

  • BONNA-Flex  Shaft Lock Pulleys are made from  special quality cast iron
  • It eliminates reboring and keyway problems.
  • Confirms to IS and ISO Standard V-Grooves specification.
  • Higher range in many sizes.
  • With interchangeable connectors.
  • Can transmit up to 250 kW of power at 1400 rpm.
  • Balancing as per requirement.
  • Multi-purpose user suitable in all kind of machineries.



 SECTIONS                   SPA, SPB, SPC, SPZ.

  SIZES                          80mm PCD to 1260 mm up to 2100 Diameter as

                                      Per special requirement.

 NO. OF GROOVES      1 to 8 and more for, requirement up to 20 special

                                      Requirement.

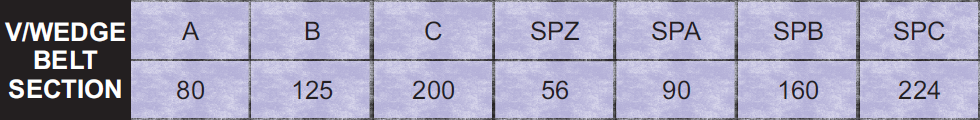

RECOMMENDED MINIMUM PULLEY PITCH DIAMETER

Image description

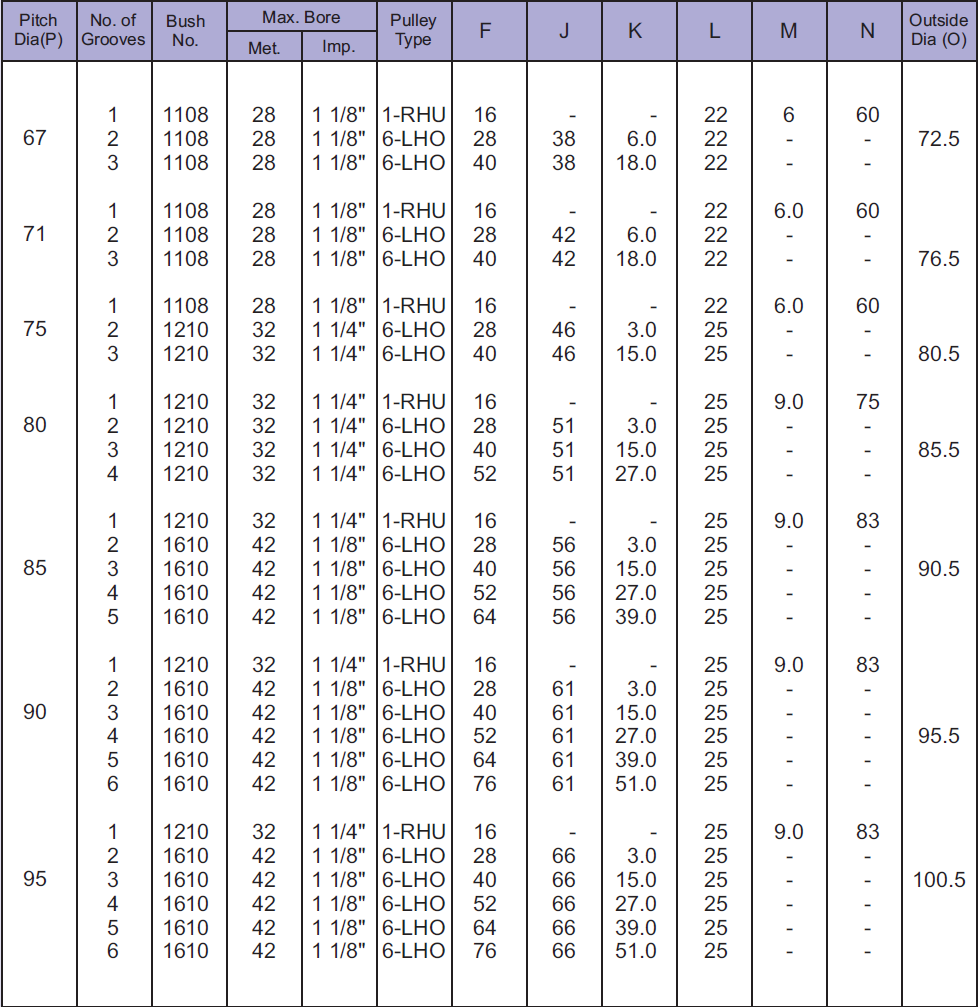

FOR USE WITH  'SPZ' SECTION BELTS

Image description
Image description
Image description
Image description
Image description

FOR USE WITH  'SPZ' SECTION BELTS

Image description
Image description

FOR USE WITH  'SPZ' SECTION BELTS

Image description
Image description
Image description
Image description
Image description

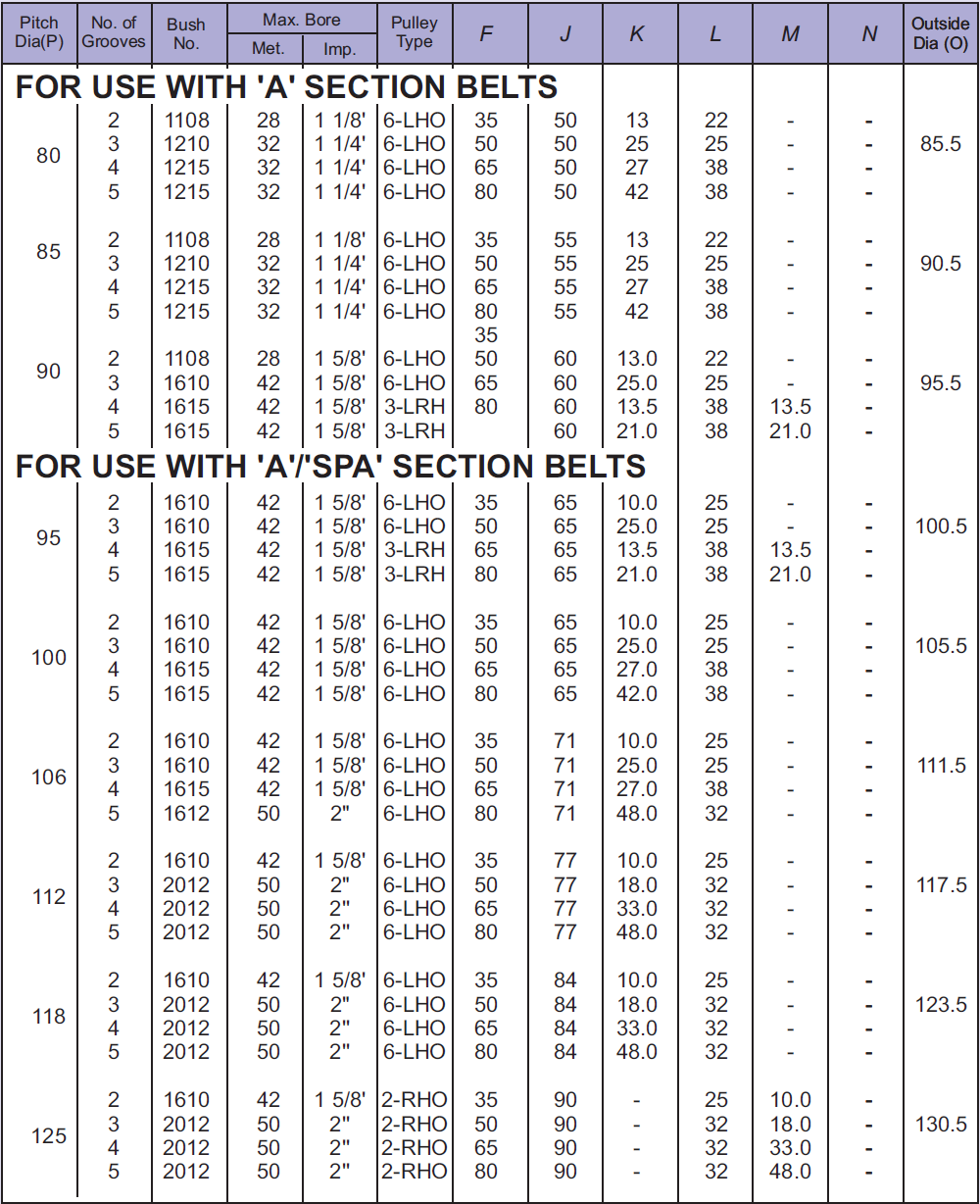

FOR USE WITH  'A' & 'SPA' SECTION BELTS

Image description
Image description
Image description
Image description
Image description

FOR USE WITH  'A' & 'SPA' SECTION BELTS

Image description
Image description
Image description
Image description
Image description

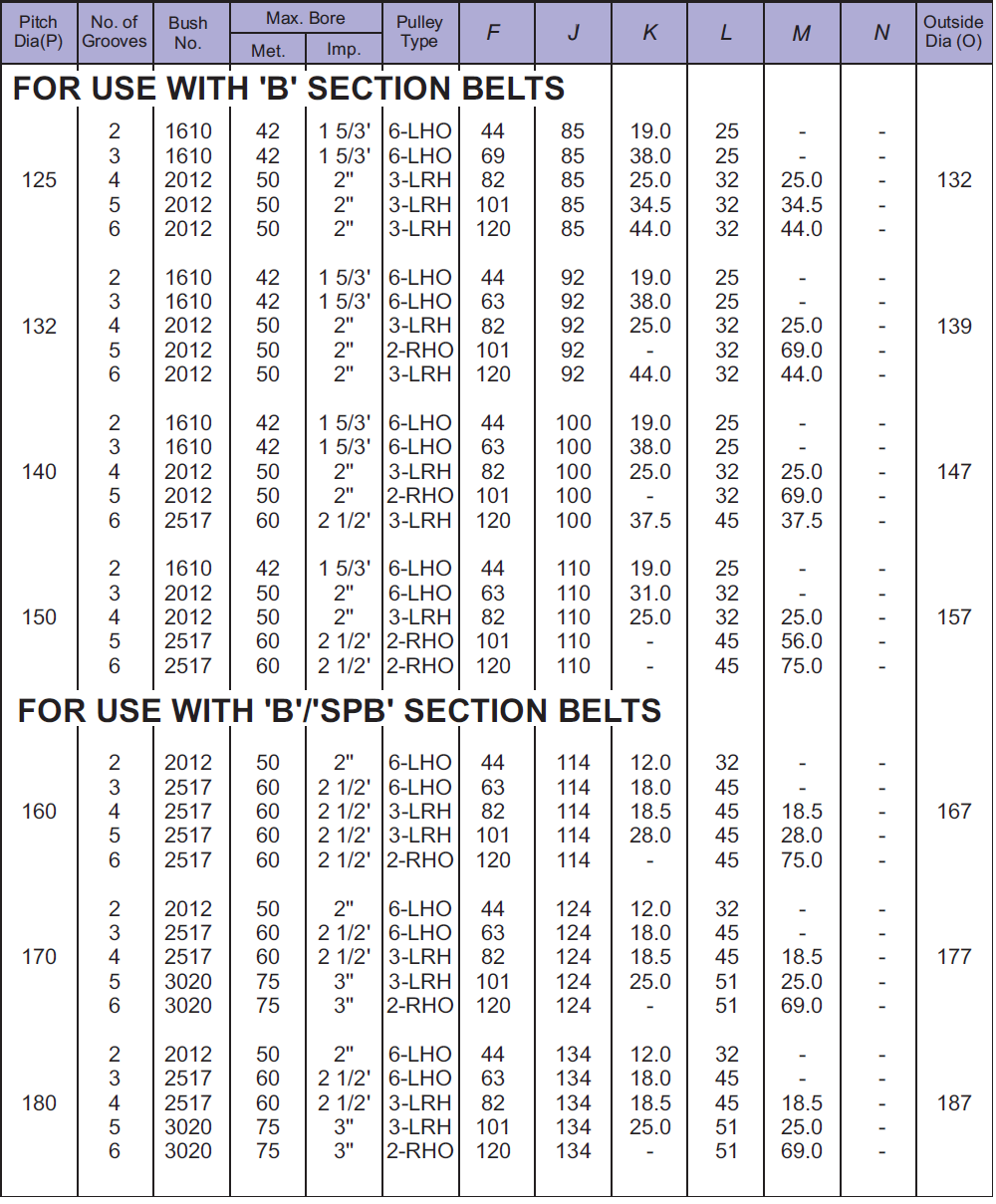

FOR USE WITH  'B' & 'SPB' SECTION BELTS

Image description
Image description
Image description
Image description
Image description

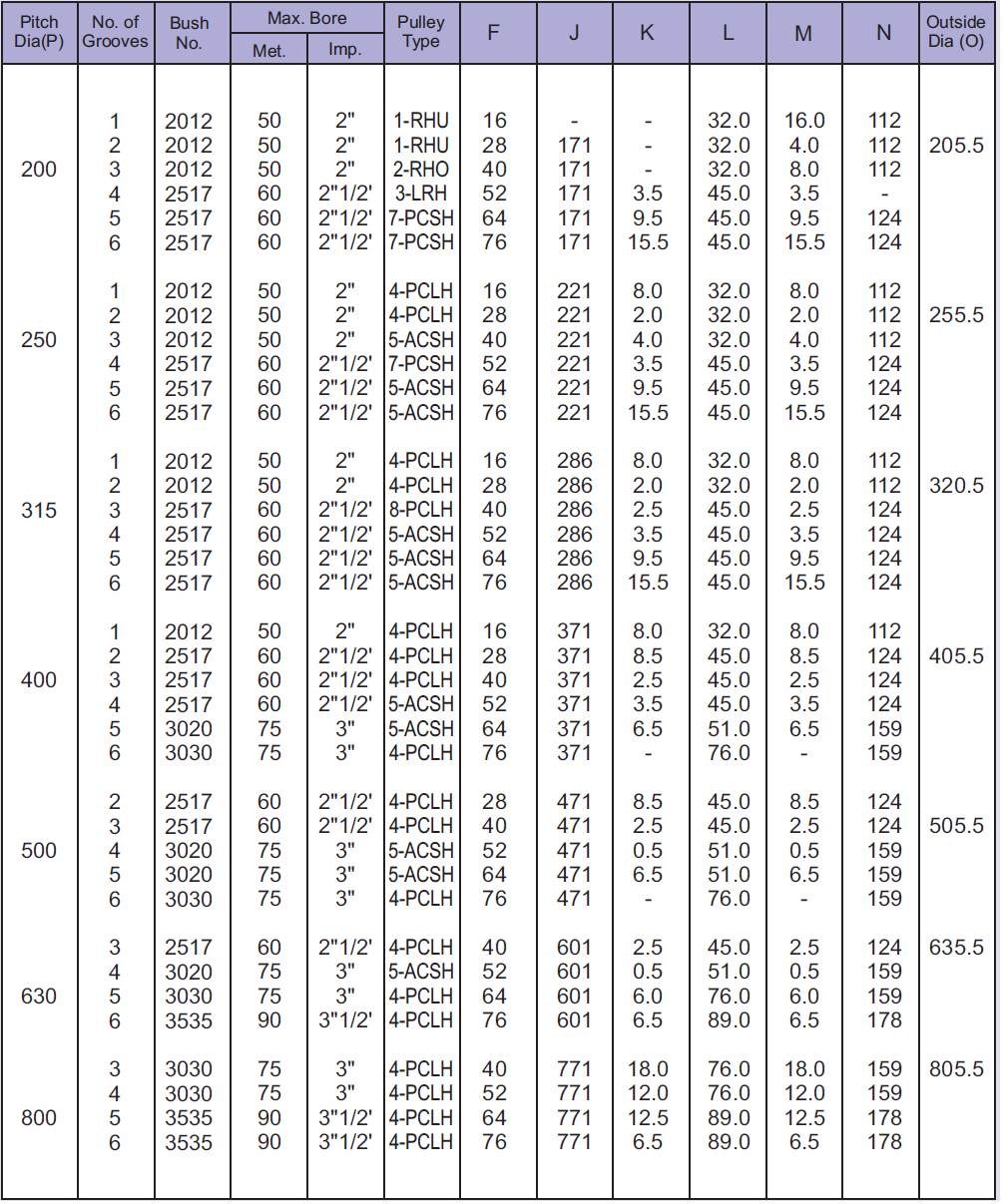

FOR USE WITH  'B' / 'SPB' SECTION BELTS

Image description
Image description
Image description
Image description
Image description

FOR USE WITH  'B' / 'SPB' SECTION BELTS

Image description
Image description

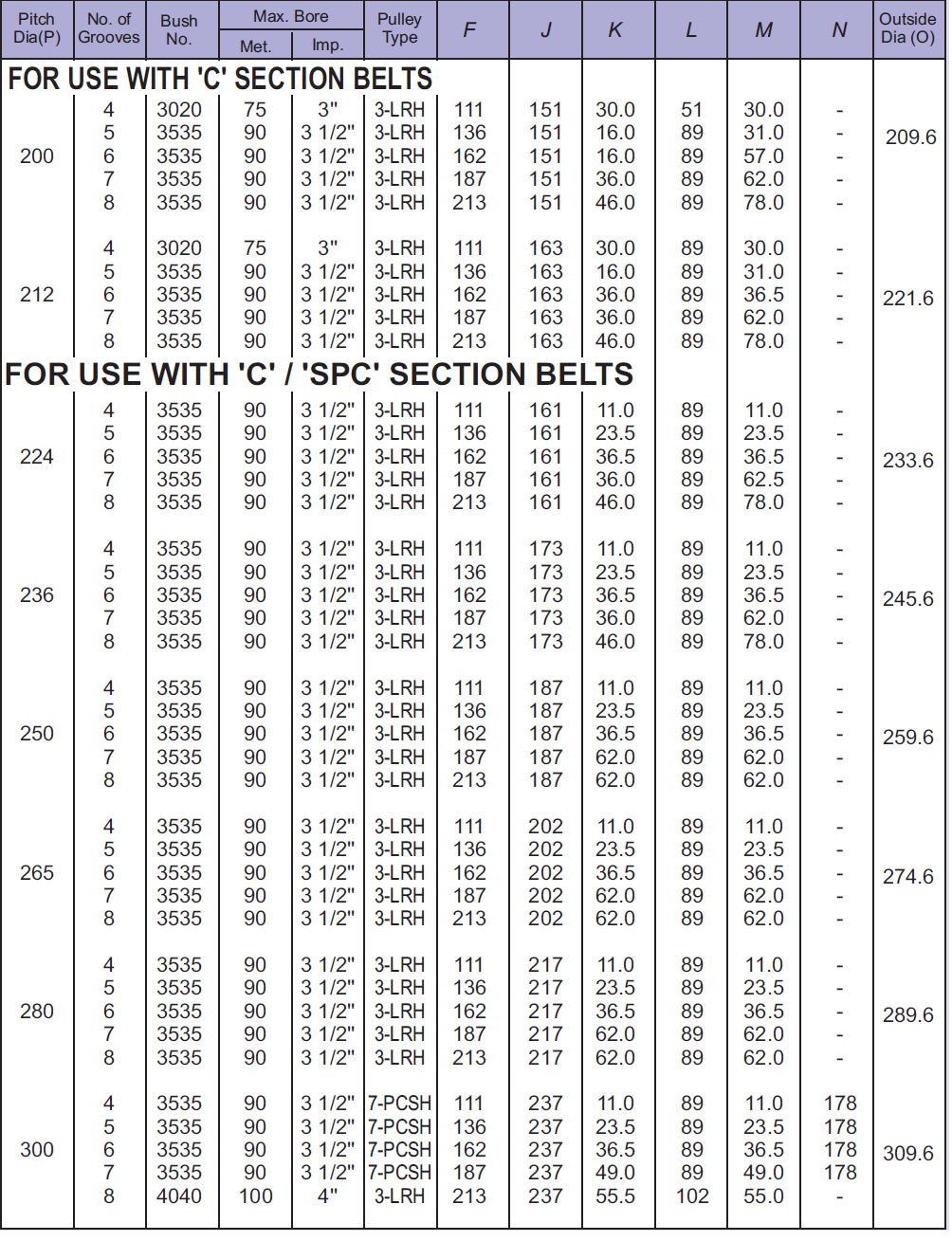

FOR USE WITH  'C' / 'SPC' SECTION BELTS

Image description
Image description
Image description
Image description
Image description

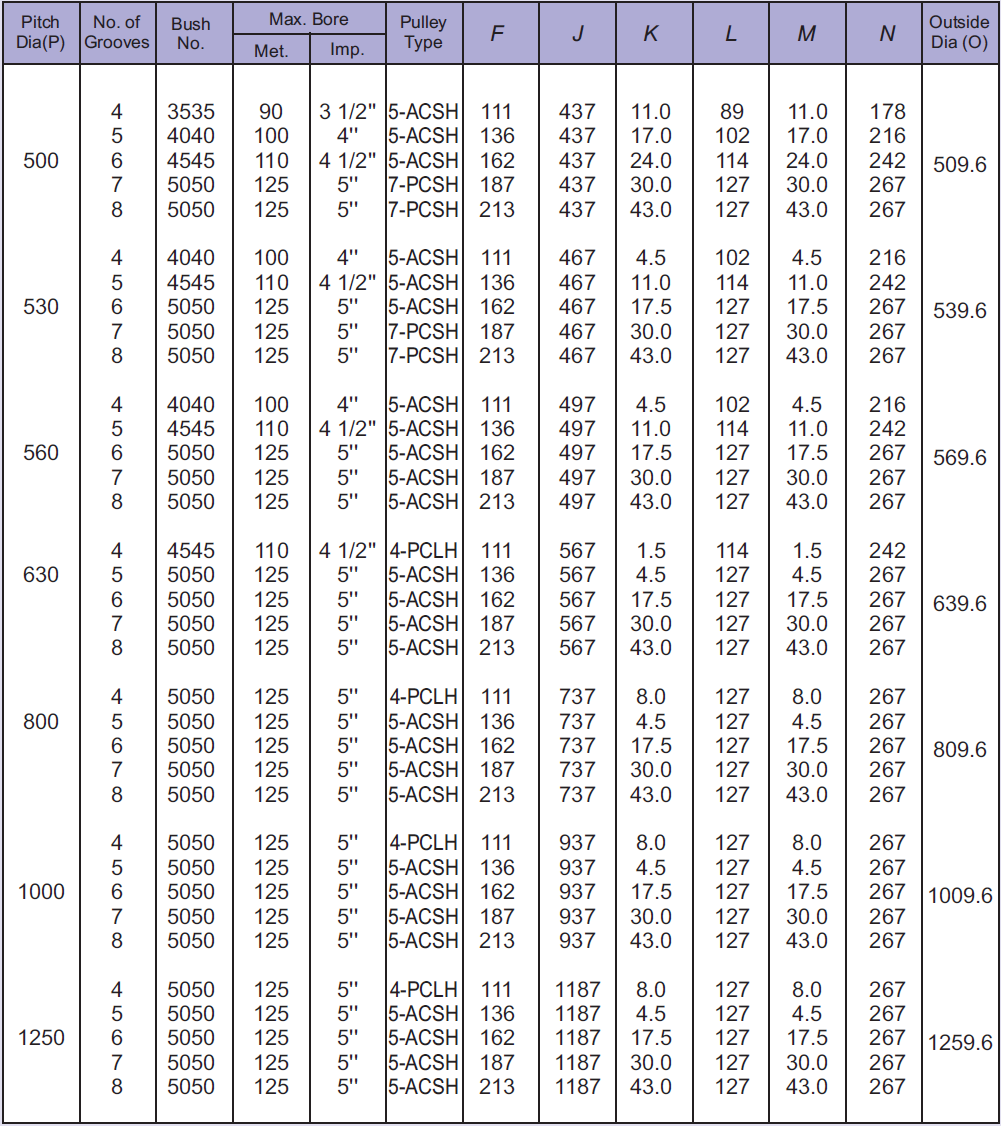

FOR USE WITH  'C' / 'SPC' SECTION BELTS

Image description
Image description

FOR USE WITH  'C' / 'SPC' SECTION BELTS

Image description
Image description
Image description
Image description
Image description
